LED Pen 2.0
The Honle LED Pen 2.0 is a simple-to-use, hand held UV curing device for uv curable adhesives and sealants. It is well suited for manual production at individual work stations, and also in an R&D laboratory setting. Generating 4800 mW/cm2 of UV intensity at 365nm wavelength, the Honle LED Pen is capable of curing UV adhesives and potting materials in short cycle times.
The LED Pen delivers efficiency through low power consumption and minimal heat generation. An internal power control and temperature switch prevent LED overheating. The Honle LED Pen 2.0 offers 10 minute continuous operation without additional cooling. Life expectancy for the LED is 20,000 hours or more.
The LED Pen 2.0 from Honle is suitable for many applications in automotive, medical device assembly, PCB packaging, optical alignment, and glass fabrication. It can also be used as a device for fluorescent excitation of genomic materials for testing and image processing. Whether for R&D or production, the portability and power of the Honle LED Pen makes it an excellent choice for LED UV curing.

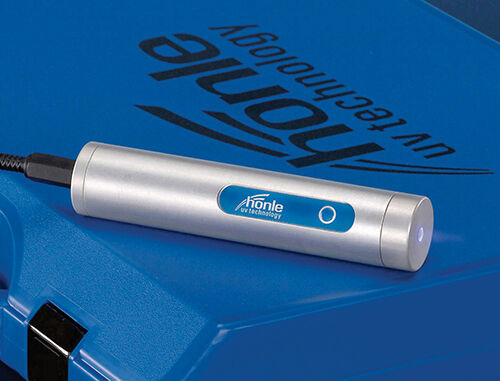

Hand held uv curing device LED Pen 2.0 from Honle
Download:
UV curable adhesives:
UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle
Technical Data for Honle LED Pen 2.0
| Wavelength: | 365 nm |
| UVA intensity at aperture*: | 4800 mW/cm² |
| UVA intensity at 5mm distance: | 650 mW/cm² |
| Electrical power input: | ca. 5 W |
| Mains supply: | from external net 100-240V AC or 24V DC |
| Dimensions (Ø x length): | 26 mm x 129 mm |
| Weight: | 130 g |
| Continuous operation without additional cooling: | max. 10 minutes |
* measured with Hönle UV-Meter
